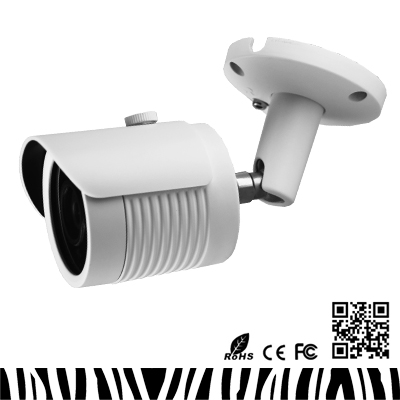

Z-LBH30S200-2.0MP
Full HD 1080P IR Bullet IP Camera
Introducing an easy-to-install, cost effective way to monitor indoor or outdoor actiivity whether it’s in near complete darkness, uneven light, or bright direct sunshine.The Z-LBH30S200 is a 1080P Full HD IP bullet camera with H.264/H.264+/H.265/H.265+ Compression. The Z-LBH30S200 is a full featured IP camera ready for any environment. Easy cable management, IP66 rating and included mounting hardware make installation fast.
• 1/2.9" SONY Low Illumination CMOS Sensor
• Hisilicon Processor (Hi3516C)
• H.264 / H.265 Compression
• 2.8mm (3.6mm, 6mm Optional)
• 3 Megapixel HD Lens, HDR, Built-in POE
• Main Stream: 1080P@30fps With IR-Cut
• 42μ x 2PCS Long Range IR LED, IR range: 30M
| Model No | Z-LBH30S200 |
| Camera | |
| Image Sensor | 1/2.9" SONY Low Illumination CMOS Sensor |
| Main processor | HISILICON Hi3516C |
| Resolution | 2MP 1080P |
| Effective Pixels | 1985(H)*1105(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Lens | |
| Focus Length | 2.8mm (3.6mm, 6mm Optional) |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 3M Pixels |
| Night Vision | |
| Infrared LED | 42µ X 2PCS |
| Infrared Distance | 30M |
| IR Status | Under 10 Lux By CDS |
| IR Power On | CDS Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Support IEEE 802.3af |
| Main Stream 1 | 1920*1080@30fps |
| Main Stream 2 | 1280*720@30fps |
| Sub Stream 1 | 720*480@30fps |
| Tri Stream |
352*288@30fps 352*288@30fps |
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config. | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) |
| Corridor Pattern | Support |
| Defog Mode | Support |
| BLC | Support |
| WDR | Support |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/NAS/CMS/Web |
| Language | English, Chinese Simplified, Chinese Traditional, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederland’s |
| General | |
| Housing | Metal, IP66 |
| Anti-cut Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -20o ~ +60o RH95% Max |
| Storage Temperature | -20o ~ +60o RH95% Max |
| Power Source | DC12V±10%, 1000mA |
| Dimension | 157(W) x 70(H) x 66(D)mm |
| Weight | 650g |
| Made in Taiwan |
