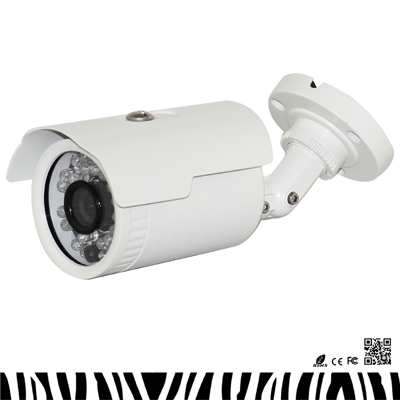

ZBIR25P70
Day/Night Bullet Camera Introducing a cost-effective means to capture images in all lighting environments-whether it's near complete darkness, uneven light, or even in bright direct sunshine. The new ZBIR25P70 camera captures outstanding, highly detailed video images virtually anywhere. It delivers the enhanced capabilities, reliability and ease-of-installation that you have been searching for in a day/night bullet camera. Best of all, the ZBIR25P70 can be installed virtually anywhere-indoors or outdoors.
General Features:
1/3" Color CCD, 700TVL
Outdoor Bullet IR Camera
Low Illumination
Board Lens 3.6mm/F2.0
Weight 600g
25 Meter IR Distance
| Model NO | ZBIR25P70 |
| Camera | |
| Image Sensor | 1/3" COLOR CCD |
| Horizontal Resolution | 700TV Lines |
| Effective Pixels | P/N: 756(H) × 504(V), 381KP |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec |
| Sync System | Internal |
| Usable Illumination | 0.1Lux/F1.2 |
| S/N Ratio | ≥47dB |
| Gamma Correction | 0.45 |
| Scanning System | PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec |
| Video Output | Composite Signal (1.0Vp-p, 75Ω) |
| Lens | |
| Focus Length | 3.6mm (4/6/8/12/16mm optional) |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 2M Pixels |
| Night Vision | |
| Infrared LED | ?5X30PCS |
| Infrared Distance | 25M |
| IR Status | Under 10 Lux By CDS |
| IR Power On | CDS Auto Control |
| Camera Features | |
| Day/Night | Color/ B&W |
| White Balance | AUTO |
| Gain Control | AUTO |
| General | |
| Weatherproof Housing | YES |
| Anti-cut Bracket | YES, Cable built-in Bracket |
| IR Cut Filter | YES |
| Operation Temperature | -10? ~ +50? RH95% Max |
| Power Source | DC12V±10%, 700mA |
| Dimension | 165(W) x75(H) x65(D)mm |
| Weight | 600g |
| Origin | Taiwan |
| Technical Data Sheet | 626KB |  |
||
| Data Sheet | 1268KB | |
